BLE主動式RFID讀取器

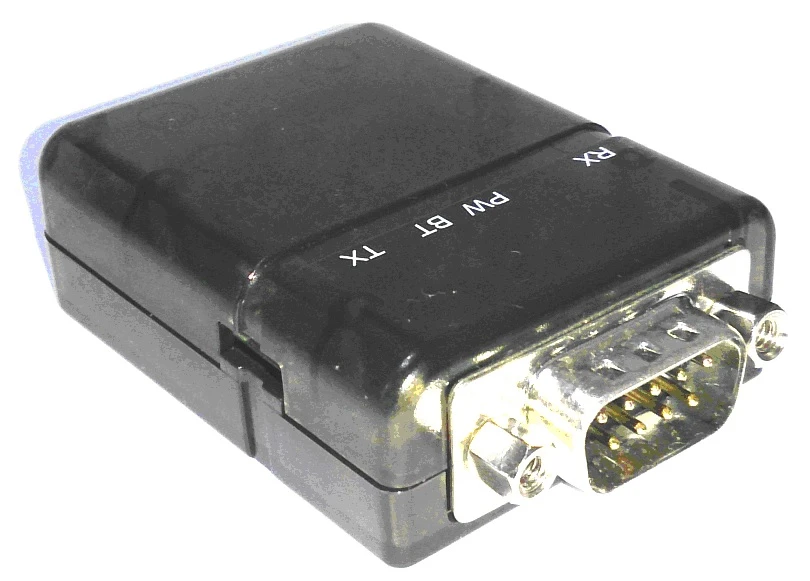

Bluetooth V4.1 BLE Active RFID RS-232 Reader
Support for Real time location system(RTLS) and Internet of Things (IOT) Applications.

(Model: BLE-R)

The active RFID reader are designed by Bluetooth
V4.1 BLE technology. The tag will broadcast the
UUID and customized message, we call the packet.
The receiving side, the reader, will sense the packet comes from the TX
side. The RS-232 interface will be integrated with the WiFi or Ethernet
gateway to transmit the packet to the control center.

Applications:
 Location system: Asset, Passenger, Patient, Trailer
 Access control: Garage, Enterprises, Bank, Vehicle, Factory, Hospital,
Superstore, School, Warehouse
 Logistic management, Cargo tracking, Airport baggage management
 Local Area Real Time Location Systems (RTLS)
 Asset Management, Internet of Things (IOT) applications


Specifications:

Frequency band: 2.4GHz ISM ( 2.40000 – 2.4835GHz)
Microcontroller: 32-bit ARM Cortex M0 ,Nordic(TM) Solution
On-air data rate: 250 kbps, 1 Mbps or 2 Mbps
Modulation: GFSK
Output power: Programmable: +4 to -20dBm in 4dB steps
Sensitivity:
-93dBm Bluetooth low energy
-96dBm at 250kb
-90dBm at 1Mbs
-85dBm at 2Mbs
Radio current consumption LDO at 1.8V:
16mA – TX at +4dBM output power
10.5mA – TX at 0dBm output power
13mA – RX at 1Mbs
Radio current consumption DC-DC at 3V:
10.5mA – TX at +4dBm output power
8.1mA – TX at 0dBm output power
9.5mA – RX at 1Mbs
System current consumption:
420nA – No RAM retention
530nA - 8k RAM retention
2μA – All peripherals in IDLE mode
Hardware Security: 128-bit AES ECB/CCM/AAR co-processor

檔案下載：Active RFID Reader
